Adjustable Ball Bearing Hinge For Gate
I.B.F.M.
Art. 838/P-839/P

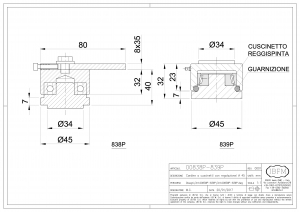

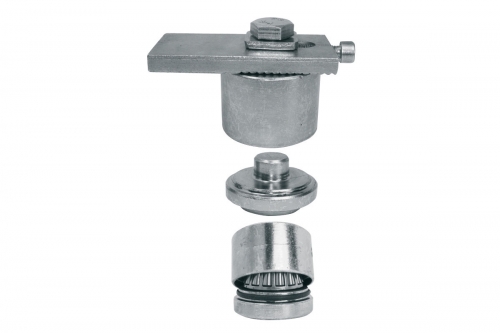

Adjustable Ball Bearing Hinge For Gate
Technical information
Heavy duty lower+upper hinges Ø45mm. This assembly is designed to manage both radial and axial loads, even in the most unforgiving conditions.
The lower hinge is suitable to be welded both on the door and on the frame and doesn’t allow the regulation of the door leaf in the lower part.
Print page
| Item code | Finishing |
|---|---|
| 838839P | Galvanized Steel |
| 838P | Galvanized Steel |
| 839P | Galvanized Steel |
| Item code | Ø | UM | Q.ty | Kg | Capacity (Kgx2pcs) |
|---|---|---|---|---|---|
|
838839P |
45mm | CP | 1 | 1,020 | 240 |
|
838P |
45mm | PZ | 2 | 0,700 | |
|
839P |
45mm | PZ | 2 | 0,550 |
