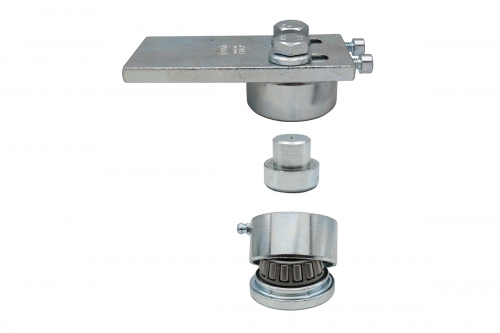

Ball Bearing Hinge for Gates - Low Type
I.B.F.M.
Art. 838/B-839/B
Ball Bearing Hinge for Gates - Low Type
Technical information
Heavy duty lower+upper hinges Ø50mm. This assembly is designed to manage both radial and axial loads, even in the most unforgiving conditions.
The upper hinge is suitable to be welded both on the door and on the frame and allows, through screws, the horizontal regulation of the door in the upper part. Reduced height for better aesthetics.
Print page
| Item code | Finishing |
|---|---|
| 838839B | Galvanized Steel |
| 838B | Galvanized Steel |
| 839B | Galvanized Steel |

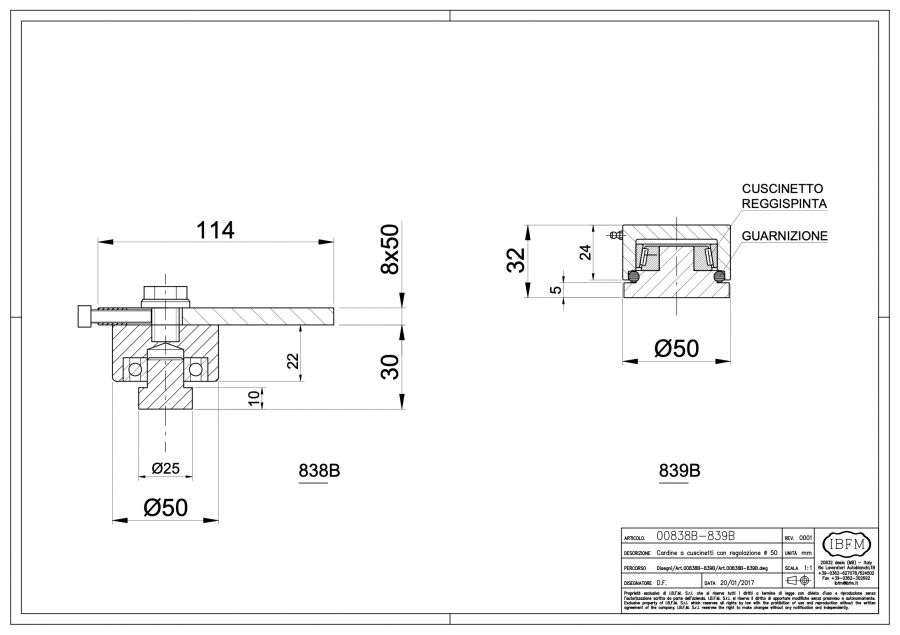

| Item code | Ø | UM | Q.ty | Kg | Capacity (Kgx2pcs) |
|---|---|---|---|---|---|
|
838839B |
50mm | CP | 1 | 1,200 | 500 |
|
838B |
50mm | PZ | 2 | 1,800 | |
|
839B |
50mm | PZ | 2 | 0,550 |
