Hook Lock with Pin - Small Type
I.B.F.M.
Art. 447/PB

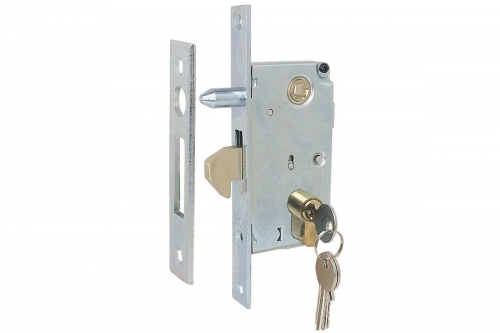

Hook Lock with Pin - Small Type
Technical information
Hook lock for sliding gate with security pin. Small type. Back set 40mm.
The shape of the lock allows the lock to automatically retain the gate when pushed in closed position. In order to re-open it, it's necessary to operate on the handle or on the cylinder's key, rotating in the opposite direction of the opening. Moreover it's possible to add security to the closure by rotating the cylinder's key towards the opening. Complete with cylinder 54mm, 3 keys and staple.
Print page
| Item code | Finishing |
|---|---|
| 447PB | Galvanized Steel |
| Item code | - | UM | Q.ty | Kg |
|---|---|---|---|---|
|
447PB |
Piccolo | PZ | 1 | 0,720 |
