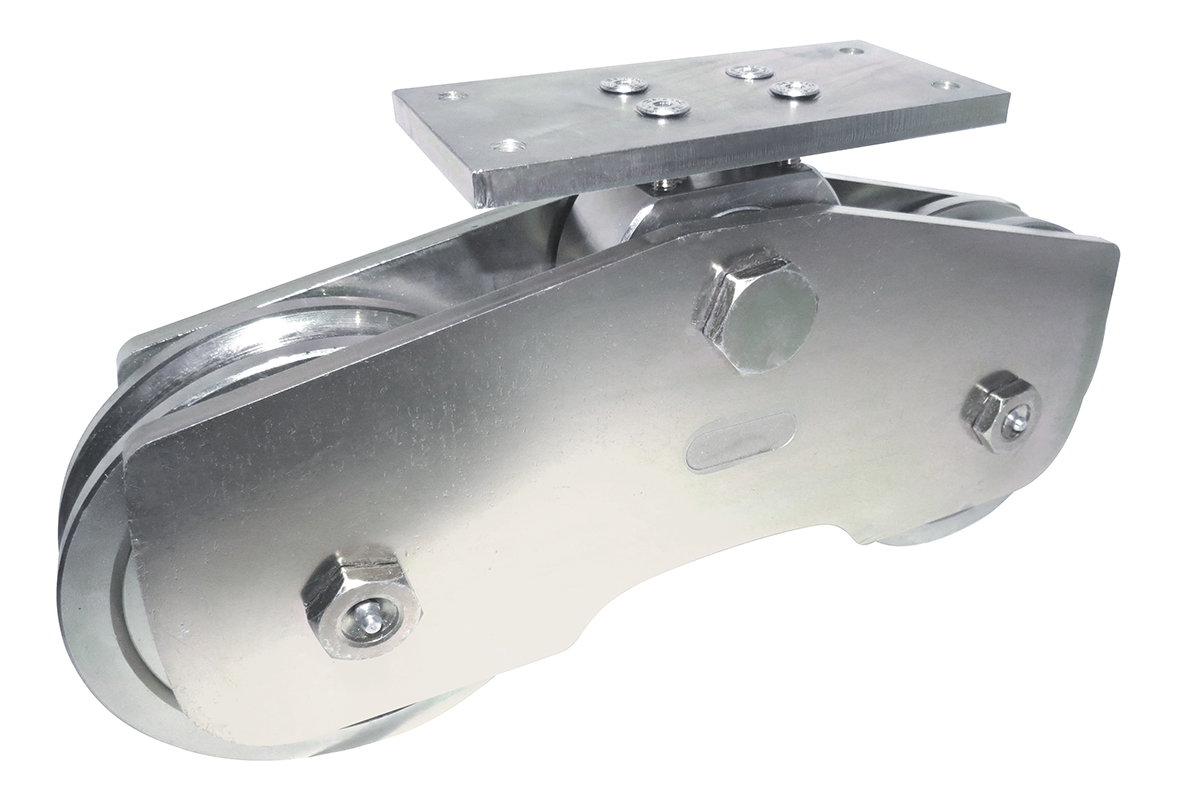

Wheel with Central Rocker Arm Support Ø 160 mm.
I.B.F.M.
Art. 384
Wheel with Central Rocker Arm Support Ø 160 mm.
Technical information
Metal wheels with central rocker arm support to be welded for very heavy metal gates. This product by rotating allows the opening of gates operated manually or by electric motors. Consider to match the shape of the groove with the shape of the track in order to obtain a durable functioning and a not excessive consumption of the elements themselves.
The installation is obtained by welding the central support of the wheels on the lower part of the profile of the gate lower section. After the installation, the whole product will be visible.
Print page
| Item code | Finishing |
|---|---|
| 384160 | Galvanized Steel |
| 384200 | Galvanized Steel |
| 384250 | Galvanized Steel |
| Item code | Ø | UM | Q.ty | Kg | Capacity (Kgx2pcs) |
|---|---|---|---|---|---|
|
384160 |
160mm | PZ | 1 | 21,000 | 1000 |
|
384200 |
200mm | PZ | 1 | 34,000 | 1300 |
|
384250 |
250mm | PZ | 1 | 37,000 | 1800 |
