Tope por Cancela por Atornillar
I.B.F.M.
Art. 470/V
Tope por Cancela por Atornillar
Información técnica

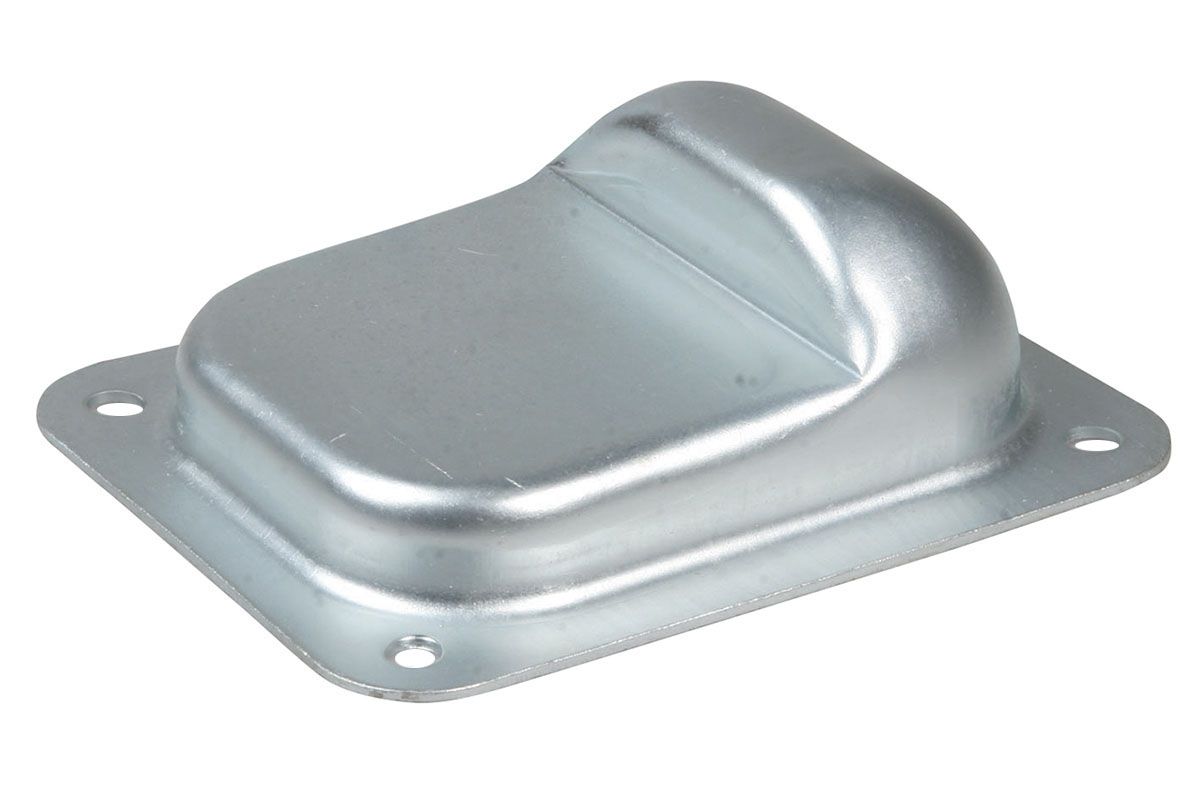

Stopper for Swinging Gate’s leaves, suitable to be screwed directly in the ground-floor.

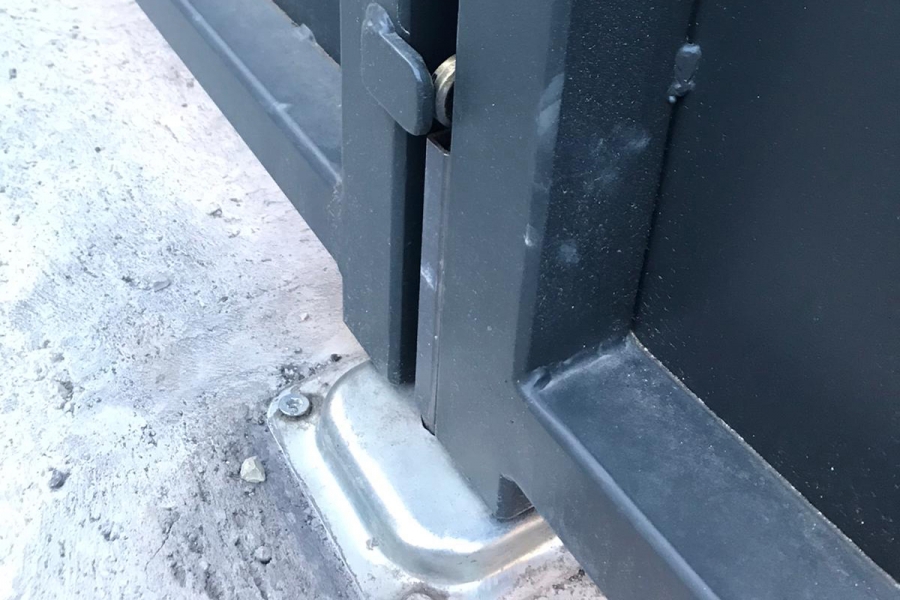

It is usually used with double winged gates, in the center of the opening in order to stop and align the 2 wings of the gate when they’re closed. This product is very important because, thanks to the correct positioning, it allows the correct functioning of electric strikes (horizontally). Moreover, by drilling a hole in the flat part of the stopper in the correct position, could be used together with both manual and automatic security bolts (vertically). Could also be installed in different positions, for different purposes and using customized brackets or supports.
Imprimir página
Código del artículo | Acabado |
---|---|
470VP | En Hierro Cingado |
470V | En Hierro Cingado |

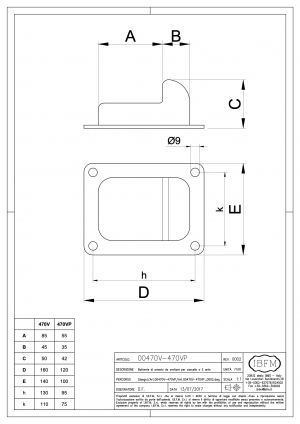

Código del artículo | A | UM | CANT. | Kg |
---|---|---|---|---|
470VP |
55mm | PZ | 10 | 2,500 |
470V |
85mm | PZ | 20 | 4,300 |
