Cardine a Cuscinetti
I.B.F.M.
Art. 948-949
Cardine a Cuscinetti
Informazioni tecniche

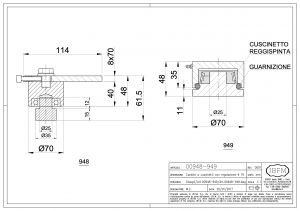

Heavy duty upper hinges Ø70mm with radial ball bearings. Designed to manage radial loads, even in the most unforgiving conditions.
This product is suitable to be welded both on the door and on the frame and allows, through screws, the horizontal regulation of the door leaf in the upper part.
Stampa pagina
Codice articolo | Finitura |
---|---|
948 | In Acciaio Inox |
948949 | In Acciaio Inox |
949 | In Acciaio Inox |
Codice articolo | Ø | UM | Q.tà | Kg | Capacità (Kgx2pcs) |
---|---|---|---|---|---|
948 |
70mm | PZ | 2 | 1,500 | 1000 |
948949 |
70mm | CP | 1 | 1,490 | 1000 |
949 |
70mm | PZ | 2 | 1,500 | 1000 |
