Sicurezza Anticaduta
I.B.F.M.
Art. 540/I
Sicurezza Anticaduta
Informazioni tecniche

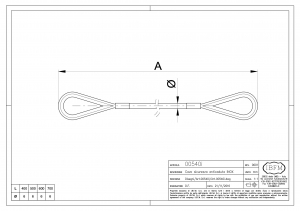

Safety cable for swinging gates.Used to prevent the fall of the gate itself in case of emergency/hinge failure. Do not performing welding actions on the gate after the cable is installed. It can cause internal damages in the cable, resultly in a decrease of the performance or ever a breakdown the product when needed.
As maximum weight load is intended the maximum force the cable can hold up if there is the detachment or the breakage of the upper hinge of a door or gate. The carring capacity is intended for a cable correctede installed in "U" shape
Stampa pagina
Codice articolo | Finitura |
---|---|
540400I | In Acciaio Inox |
540520I | In Acciaio Inox |
540600I | In Acciaio Inox |
540700I | In Acciaio Inox |
Codice articolo | L | UM | Q.tà | Kg | Portata (Kgx1pc) |
---|---|---|---|---|---|
540400I |
400mm | PZ | 1 | 0,180 | 1600 |
540520I |
500mm | PZ | 1 | 0,190 | 1600 |
540600I |
600mm | PZ | 1 | 0,180 | 1600 |
540700I |
700mm | PZ | 1 | 1,220 | 1600 |
